Model No.︰HPH
Brand Name︰APLIFTS
Country of Origin︰China
Unit Price︰-
Minimum Order︰24 pc

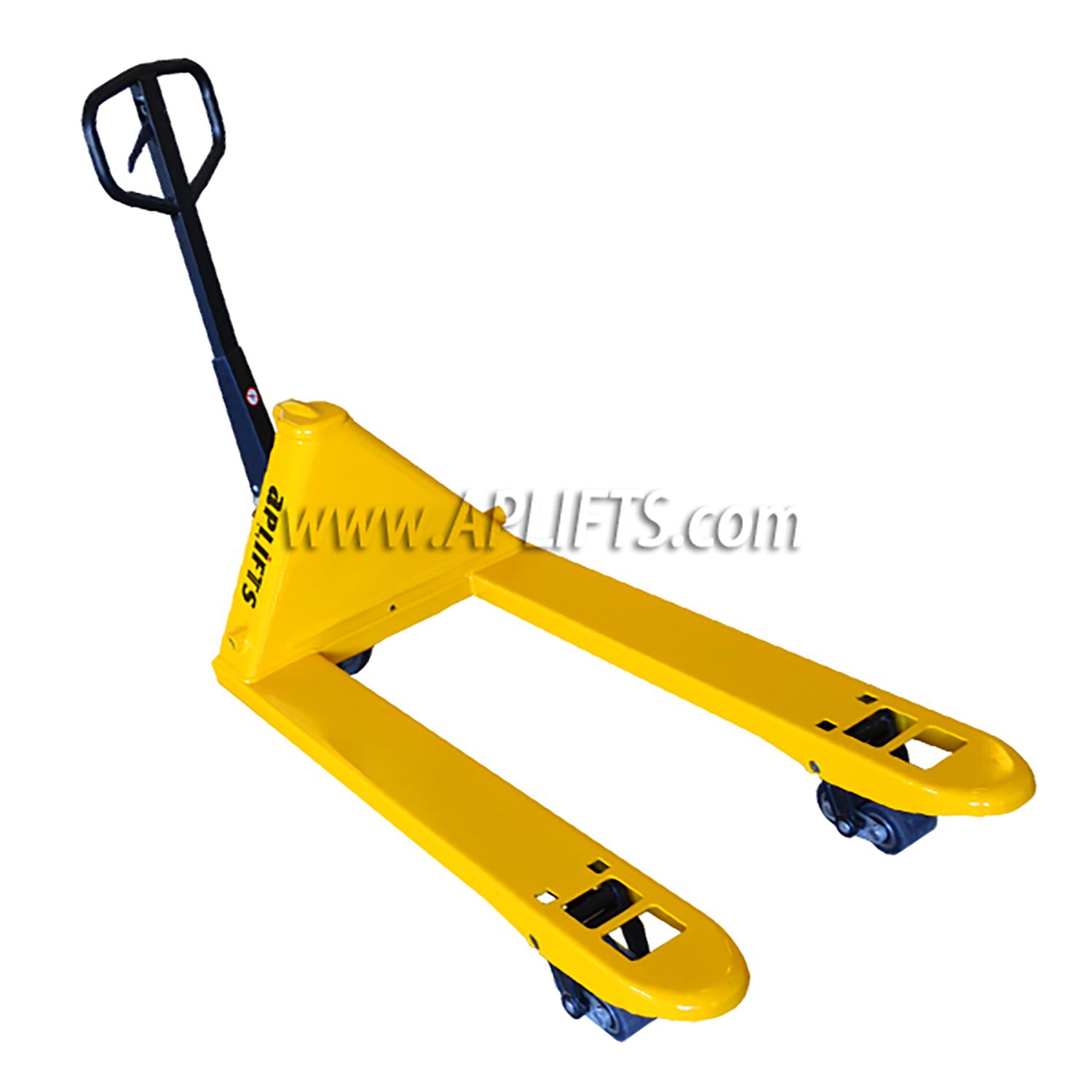

5.0ton Heavy Duty Type Pallet Truck
The flexible steering wheel reduces the actual pully effort required.
5mm thickness high rigidity steel plate.
High reliability and long service lift of 5 years.
Reliable oil leak-proof hydraulic system.
The lift system is equipped with overloading protection valve to ensure the safe operation.
| Model | HPH | |||||
| Capacity | Q(kg) | 5000 | ||||
| Min. fork height | h13(mm) | 88/77 | ||||
| Max. fork height | h3(mm) | 207/197 | ||||
| Steering wheel | mm | Φ200 | ||||

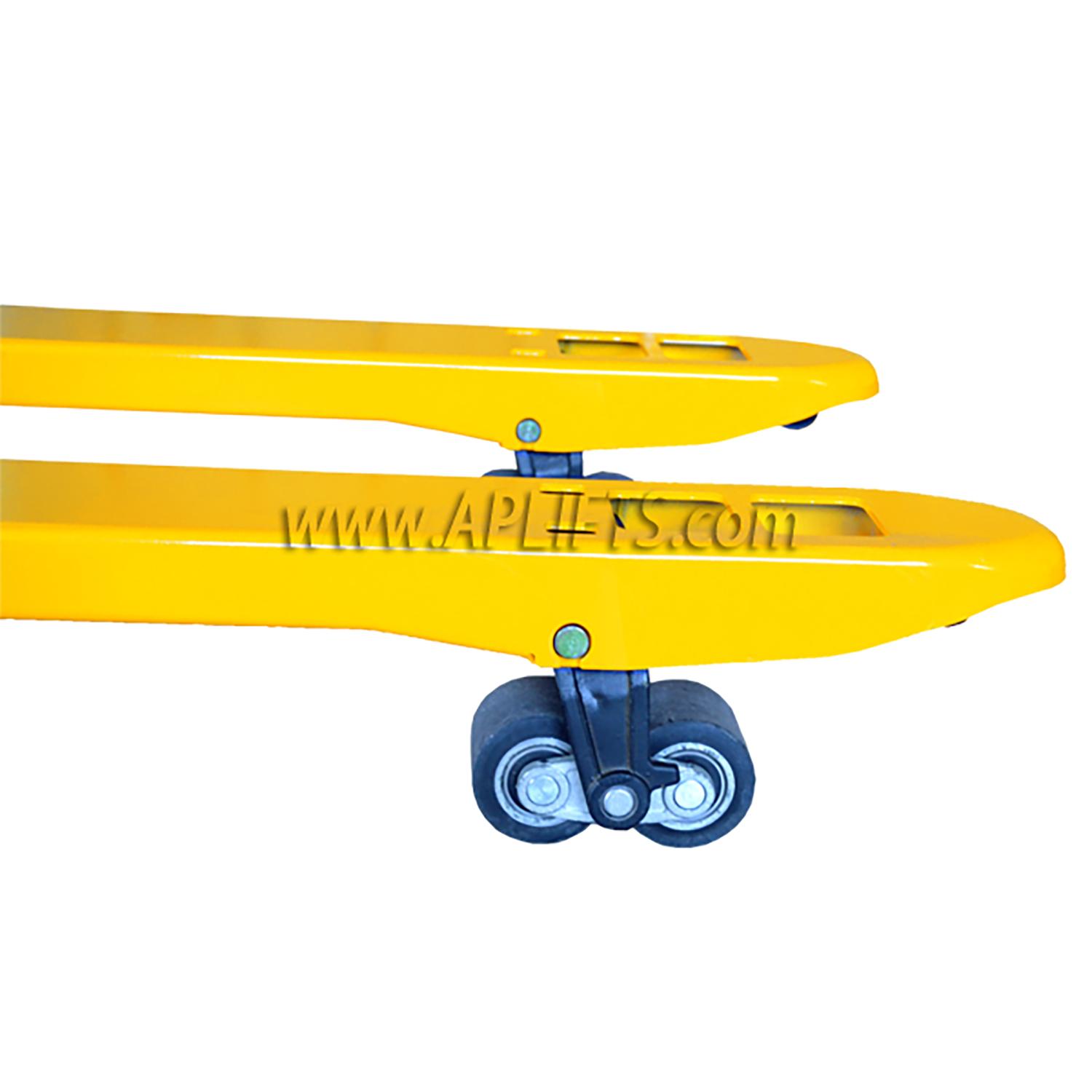

| Fork wheel tandem | mm | Φ80 | ||||
| Overall length | l1(mm) | 1550/1620 | ||||
| Fork length | l(mm) | 1150/1220 | ||||
| Width overall forks | b5(mm) | 550/685 | ||||
| Self-weight | kg | 105-110 | ||||
Payment Terms︰ TT/LC
